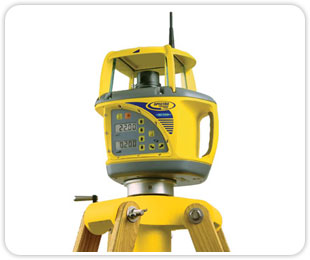

Spectra Precision
Laser GL722 Series
Description
Trimble Laser GL-722 Series Dual Grade Laser
Transmitter is the right Laser for the right job
from an Economical grade Transmitter to an
advanced long range radio remote controlled dual
grade Transmitter. Further the GL-722 Series
Laser Transmitter offers the most innovative
collection of features ever available.
Features
-
PlaneLok: The
laser beam locks to a fixed elevation and
stays there regardless of wind or
temperature changes.
-
Grade Matching:
Set your receiver at the same height as the
transmitter , go to the remote point with
the remote control, and the transmitter will
automatically match the
two points and display the grade without
returning to the laser transmitter
-
Automatic Axis
Alignment: Gives you simple alignment of
either side of any grade axis to the desired
remote point
-
Long Range Remote
Control: All transmitter functions are
automatically controlled from inside the
vehicle allowing for one-person set-up and
operation.
|
 |
|
|
|
| |
|
|

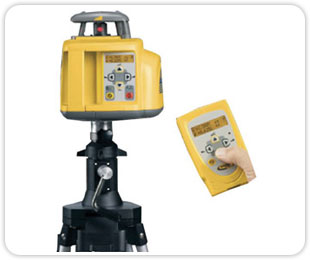

Laser Transmitter
GL-422 with Dual Grade
Description
GL 422- Rugged new grade Laser with two-way
Radio Remote offers superior Grade, Level and
vertical capabilities. The Laser GL-422 (Dual
Grade ) Transmitter is cost effective automatic
self leveling Laser. The GL 422 Feature a 2-way,
full function remote control with a built-in
back-lit grade display.
Features
- Works with both the GCS300 and GCS400
- Optional three foot and four foot electric mast capability
LED set up lights
- Rugged design; 100% weatherproof
- Auto detection and connection to PA control systems
Technical Specifications
|
Laser Source |
: |
<5mw 635nm |
| Drop
height on concrete |
: |
1 m (3
ft) |
|
Operating diameter |
: |
(Above) 800 m |
|
Compensation method |
: |
H/V
Electronic Self Leveling |
|
Grade range |
: |
–10 to +15% Dual Axes |
| Grade
accuracy |
: |
0.015% 3
mm@30 m |
|
Remote control type |
: |
Full 2-way communication |
| Remote
control range |
: |
100 m
(330 ft) radius |
|
Rotation speed |
: |
300, 600 RPM selectable |
|
Transmitter battery life |
: |
55 hours |
Eye Receiver HR-550
Technical Specifications
|
Operating temperature |
: |
-20°C to +50°C (-4°F to+122°F) |
| Battery
life (2-AA) |
: |
100 hours at normal
opera. |
|
Auto shut-off |
: |
30 minutes |
|
Anti-strobe sensor |
: |
Yes |
|
Dust & waterproof |
: |
Yes |
|
 |
|
|
|
| |
|
|

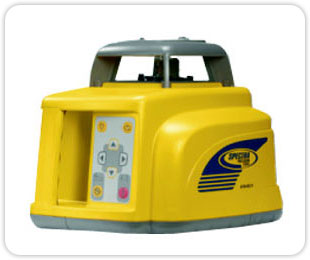

Laser Transmitter
HV-401 with Single Grade
Description
HV 401-3 The highly visible, multi purpose
spectra precision® Laser HV 401-3 is advanced
Laser with exceptional accuracy and durability.
The HV 401-3 Laser gives you easy setup and one
person operation in a wide variety of
applications, especially Land-Leveling using the
HV 401-3 Laser you can maximize your return on
investment, and boost your productivity.
Features
- Highly visible beam.
- Automatic Self-Leveling.
- Intuitive one-touch operator controls
- One-person operation reduces labor
costs.
- Automatic compensation for level and
plumb.
- Temperature Calibrated, high accuracy
for consistent performance across larger job
sites.
- Multiple power option, NIMH rechargeable
Batteries, direct power or alkaline
batteries for reduces downtime
- Fast setup, minimal training time, and
automatic Self-Leveling minimizes operating
costs and boosts productivity.
- Rugged, durable, Light weight Eye
Receiver HR 350 makes fill simpler.
Technical Specifications
|
Laser Source |
: |
4.99 mw maximum |
| Laser
accuracy |
: |
±10 arc
sec. (± 1.5 mm at 30 m) |
|
Self-leveling range |
: |
±5 degrees |
|
Receiver operating dia. |
: |
800 m
(2,600 ft) |
|
Rotation speed |
: |
Four preset speeds from 10 to 600rpm |
|
Operating temperature |
: |
-20 °C
to 50 °C (-4 °F to 122 °F) |
|
Storage temperature |
: |
-20 °C to 70 °C (-4 °F to 158 °F) |
| Size |
: |
21L ×
18W × 20H cm |
|
Weight |
: |
3.1 kg (6.8 lbs) |
Eye Receiver HR-350
Technical Specifications
|
Number of Disp Channels |
: |
5 |
| Displays |
: |
LCDs
Front & Rear, 3 LEDs Front |
|
Low Battery Warning |
: |
Yes |
|
Battery Life (AA-2) |
: |
70 hours |
|
Auto Shut-Off |
: |
30 minutes |
|
Water Resistance |
: |
Ip67 |
|
HR 350 |
|
|
|
| |
|
|

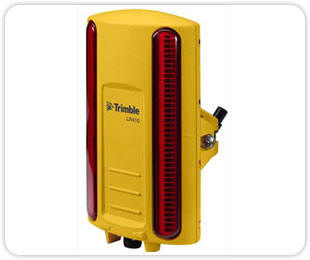

Laser Plane
Receiver LR-410
Description
Cost-effective automated machine control systems
that improve productivity and accuracy of
agricultural drainage and leveling equipment by
up to 50%.
Features
- Works with both the GCS300 and GCS400
- Optional three foot and four foot electric mast capability
LED set up lights
- Rugged design; 100% weatherproof
- Auto detection and connection to PA control systems
Technical Specifications
|
Laser Transmitter Speed |
: |
270 to 1320 RPM |
| Laser
Beam Accep.Angle |
: |
360° |
|
Detection Window |
: |
231mm (9.1”) |
|
Operating Temperature |
: |
-40°C to
71°C (-40°F to +160°F) |
|
Storage Temperature |
: |
-55°C to 85°C (-67°F to +185°F) |
| Electric
Input |
|
10 to 30
V DC |
|
 |
|
|
|
| |
|
|

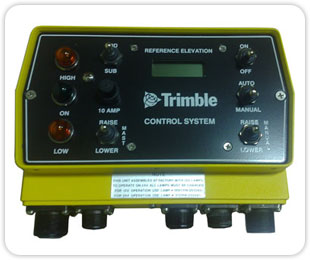

Control Box CB2ETD
Features
-
CB 2ETD is rugged,
operator interface for single Laser-Based
control systems. This is simple to setup and
use.
-
This device is design to
be mounted in the cab while in operation,
and be quickly removed for storage when not
in use.
-
Control Box allows the
use to manually control the elevation of
blade, for balancing or rough grading using
the LCD indicator or to automatically
control the blade for fine grading.
-
The CB2ETD features
proportional valve control for a smooth and
quick corrections making more consistent and
accurate finish grade. It can be easily
moved from the machine to machine. CB2ETD
also features control for electric mast .
|
 |
|
|
|
| |
|
|

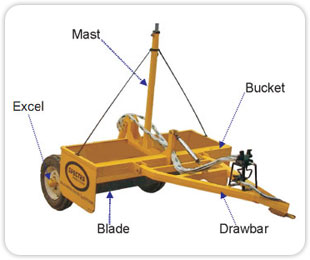

Bucket Scrapper for Laser
Land Leveler
Technical Specifications
Bucket
Thickness: 10 mm / 8 mm (iron sheet)
Weight: 550 kg,
Height: 2.5 ft,
Width: 78 inch,
Depth: 2 ft
Drawbar
Length: 80 inches
Top-Link-Pin inch for adjustment of bucket.
Mast
Automatic Motor driven Electric Mast.
Rigid Mast with Manual height adjustment.
Blade
Length: 77 inches, Height: 4.92 inches,
Thickness: 16mm
Excel
Length: 66 inches
Tyres
No. of wheels: Two, Tyres size: 6-16 inches
Recommended Tyre Pressure: 28p |
 |
| |
|
|
